|  Brass Valves
Brass Solenoid Valves.Brass solenoid valves and miniature brass solenoid valves are generally manufactured in sizes 1/8 BSP thread through to 2" BSP thread, with some suppliers offering 21/2" and even 3" BSP thread options. Brass solenoid valves to suit most water, light oil, vacuum, oxygen, Propane, LPG, LNG, compressed air, neutral or non aggressive or corrosive gases and fluids to suit most general purpose applications.

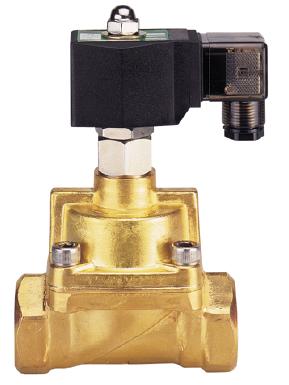

Most brass solenoid valve suppliers will offer a quite diversified range of direct acting and pressure assisted piston and diaphragm brass solenoid valves in both normally closed, normally open, latching, ATEX EEx m II T4 and ATEX Explosion Proof EEx d II C T4 and T6. Brass solenoid valve types would include brass steam solenoid valves with PTFE seals, brass vacuum solenoid valves with NBR seals, miniature brass solenoid valves with NBR, EPDM and FKM seals and high pressure brass solenoid valves with FKM or PTFE seals suitable for water, air, steam, vacuum, light oil or for any non aggressive non corrosive liquid or gas media application in any voltage from 12vAC, 24vAC, 48vAC, 110vAC, 230vAC and 380vAc or 12vDC, 24vDC, 48vDC, 110vDC, 125vDC and 220vDC. Brass solenoid valves typical European stocked port sizes are in BSP thread however NPT thread for the American market and flanged PN16, ANSI150Lb or JIS10K are generally available quickly from most brass valve manufacturers. Brass solenoid valve pressures range from vacuum to 150 bar, with brass solenoid valve options exceeding 200 bar available quickly in both 2/2 way (2 port 2 position) and 3/2 way (3 port 2 position) function. Please find below a short list of the most popular brass solenoid valve leading manufacturers such as Shako Fluid Power, CS Fluid Power, RSG Regal, Nass Magnet, ERA-SIB, Pro-Uni D, Sunwell, Queen and Z-Tide.
Read more about Brass solenoid valves here.
Brass Solenoid valve 2/2 Way Normally Closed Direct Acting | | Brass solenoid valve 2/2 way miniature: PU220AR Function: 2/2 normally closed Operation: direct acting Pressure range: 0 to 10 Bar Port sizes: 1/8, 1/4 or 3/8" BSP or NPT thread Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive

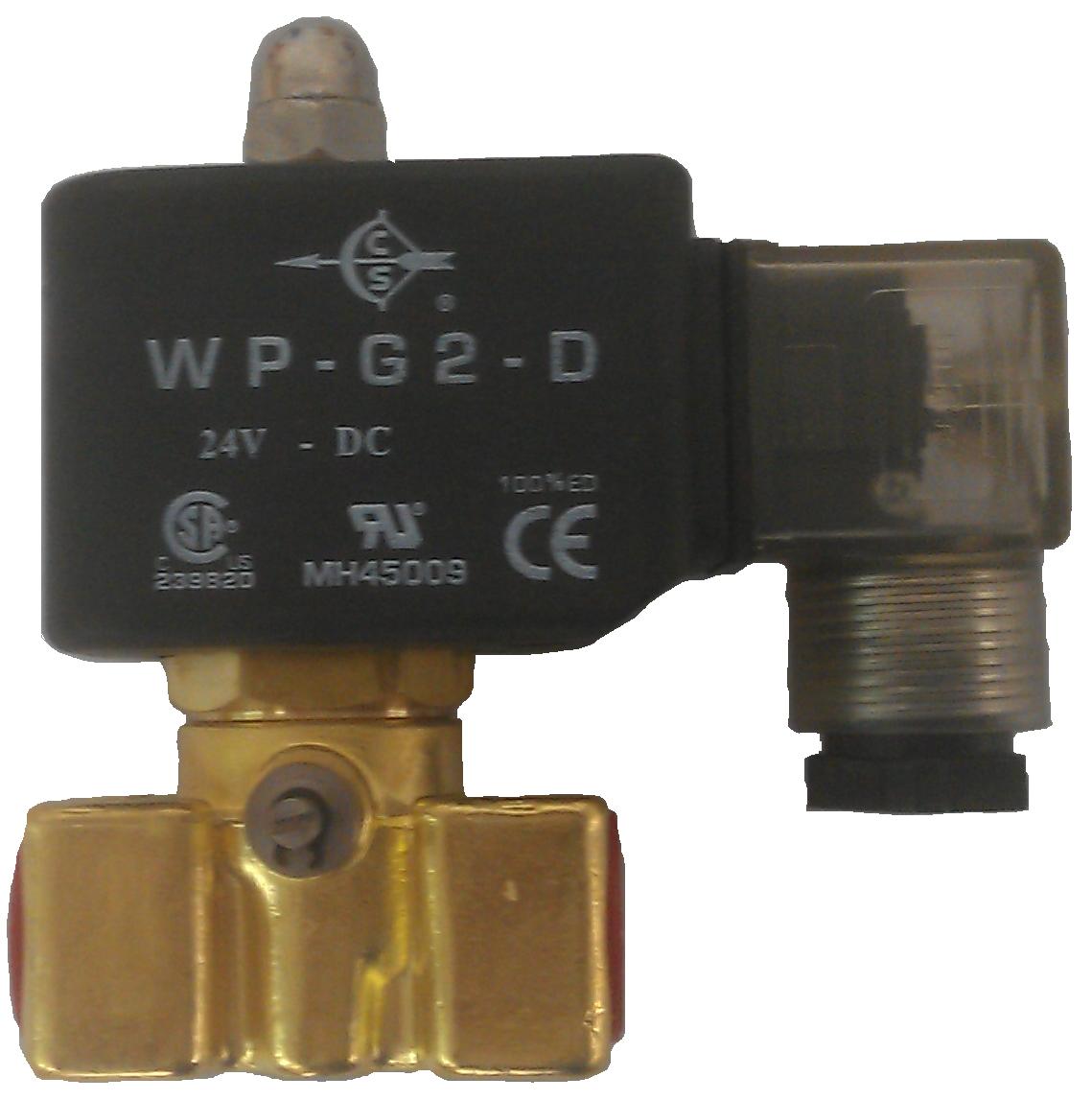

| | Brass solenoid valve 2/2 way miniature high pressure: AD6000 Function: 2/2 normally closed Operation: direct acting Pressure range: 0 to 150 Bar Port size: 1/8" BSP or NPT thread Body material: brass Seal material: NBR, FKM, EPDM, PTFE or Silicone Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve 2/2 way miniature high pressure: AD8000 Function: 2/2 normally closed Operation: direct acting Pressure range: 0 to 150 Bar Port size: 1/4" BSP or NPT thread Body material: brass Seal material: NBR, FKM, PTFE, Silicone or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve 2/2 way miniature: AD612 Function: 2/2 normally closed Operation: direct acting Pressure range: 0 to 10 Bar Port sizes: 1/8, 1/4, 3/8 or 1/2" BSP or NPT thread Body material: brass Seal material: NBR, FKM, PTFE, Silicone or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve 2/2 way general purpose: PU220A + AD Function: 2/2 normally closed Operation: assisted lift hung diaphragm Pressure range: 0 to 16 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve direct acting option for position switch: 850 Function: 2/2 normally closed Operation: direct acting forced pilot Pressure range: 0 to 25 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: red brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Cast Iron Solenoid valve 2 way with optional position switch: 860CI Function: 2/2 normally closed Operation: direct acting forced pilot Pressure: 0 to 16 Bar Port: DN15, DN20, DN25, DN32, DN40 or DN50 PN16 flange Body material: cast iron Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Cast iron solenoid valve 2 way with optional position switch: 860LCI Function: 2/2 normally closed or normally open Operation: direct acting forced pilot Pressure: 0 to 25 Bar Port: DN65, DN80, DN100, DN125 or DN150 PN40 flange Body material: cast iron Seal material: NBR, FKM, PTFE or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Cast steel solenoid valve 2 way direct acting with optional position switch: 860CS Function: 2/2 way normally closed or normally open Operation: direct acting forced pilot Pressure range: 0 to 16 Bar Port sizes: DN15, DN20, DN25, DN32, DN40 or DN50 PN16 flange Body material: cast steel Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Cast steel solenoid valve 2 way optional position switch : 860LCS Function: 2/2 normally closed or normally open Operation: direct acting forced pilot Pressure range: 0 to 25 Bar Port sizes: DN65, DN80, DN100, DN125 or DN150 PN40 flange Body material: cast steel Seal material: NBR, FKM, PTFE or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | Brass Solenoid valve 2/2 Way Normally Closed Servo / Pressure Assisted | | Brass solenoid valve general purpose floating diaphragm: PU225A Function: 2/2 way normally closed Operation: pressure servo assisted diaphragm Pressure range: 0.5 to 10 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2,2, 21/2 or 3" BSP or NPT Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,liquid,light oil and non aggressive | | Brass solenoid valve high pressure general purpose: PU225H Function: 2/2 way normally closed Operation: servo pressure assisted floating diaphragm Pressure range: 0.5 to 20 Bar Port sizes: 3/8, 1/2, 3/4 or 1" BSP or NPT thread Body material: brass Seal material: nylon reinforced EPDM, NBR or FKM Media: air,gas,fluid,water,liquid,light oil and non aggressive |
| Brass solenoid valve WRAS approved: PU225W Function: 2/2 way normally closed Operation: servo pressure assisted floating diaphragm Pressure: 0.5 to 16 Bar Port: 3/8, 1/2, 3/4 or 1" BSP or NPT thread Body material: brass Seal material: EPDM (WRAS certified) Media: mains water, drinking water, potable water, clean tap water

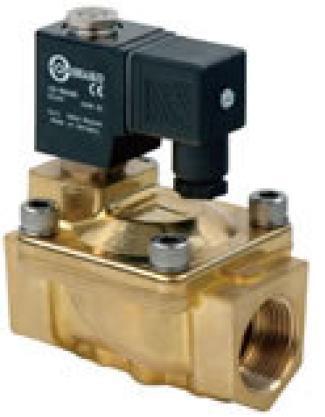

| | Brass solenoid valve high pressure floating piston: PU225X Function: 2/2 way normally closed Operation: pressure servo assisted floating piston Pressure: 0.5 to 50 Bar (test pressure 75 bar) Port sizes: 3/8, 1/2, 3/4 or 1" BSP or NPT thread Body material: brass Seal material: PTFE (graphite impregnated) Media: air,gas,fluid,water,liquid,light oil and non aggressive | | Brass solenoid valve miniature high pressure high flow piston: SAP Function: 2/2 way normally closed Operation: pressure servo assisted floating piston Pressure range: 1 to 100 Bar Port sizes: 1/8, 1/4 or 3/8" BSP or NPT thread Body material: brass Seal material: PTFE Media: air,gas,fluid,water,liquid,light oil and non aggressive | | Brass solenoid valve 40 bar high pressure 2 way floating piston: SAH Function: 2/2 way normally closed Operation: pressure servo assisted floating piston Pressure range: 0.5 to 40 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: air,gas,fluid,water,liquid,light oil and non aggressive | | Brass solenoid valve 80 bar high pressure 2 way floating piston: SAHH Function: 2/2 Way normally closed Operation: pressure servo assisted floating piston Pressure range: 0.5 to 80 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: air,gas,fluid,water,liquid,light oil and non aggressive | | Brass solenoid valve 120 bar high pressure 2 way floating piston: SAHH Function: 2/2 way normally closed Operation: pressure servo assisted floating piston Pressure range: 0.5 to 120 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: air,gas,fluid,water,liquid,light oil and non aggressive | Brass solenoid valves for Steam and Hot Oil | | Brass solenoid valve steam 12 bar with floating piston: SA Function: 2/2 way normally closed Operation: pressure servo assisted floating piston Pressure range: 0.5 to 12 Bar 200°C steam Port sizes: 1/8,1/4,3/8,1/2,3/4,1,11/4,11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: hot gas,hot air,hot fluid,hot water,hot oil and steam | | Brass solenoid valve steam 10 bar with floating piston: PU225S03-08 Function: 2/2 way normally closed Operation: pressure servo assisted floating piston Pressure range: 0.5 to 10 Bar steam at 185°C, air or water to 15 Bar Port sizes: 3/8, 1/2, 3/4 or 1" BSP or NPT thread Body material: brass Seal material: PTFE Media: hot gas,hot air,hot fluid,hot water,hot oil and steam | | Brass solenoid valve steam 10 bar 2 way floating piston: PU225S12-20 Function: 2/2 way normally closed Operation: pressure servo assisted piston Pressure range: 0.5 to 10 Bar 185°C steam Port sizes: 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: hot gas,hot air,hot fluid,hot water,hot oil and steam | | Brass solenoid valve steam normally open floating piston: NOSA Function: 2/2 way normally open Operation: servo pressure assisted close with floating piston Pressure range: 0.5 to 12 Bar 200°C steam Port sizes: 3/8, 1/2, 3/4 , 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: hot gas,hot air,hot fluid,hot water,hot oil and steam | Brass Solenoid Valve 2/2 Way Normally Open | | Brass solenoid valve miniature direct acting normally open: NOAD612 Function: 2/2 Way normally open Operation: direct acting Pressure: 0 to 10 Bar Port sizes: 1/8, 1/4, 3/8 or 1/2" BSP or NPT thread Body material: brass Seal material: NBR, FKM, Silicone, PTFE or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve miniature 2 way normally open: 200201NO Function: 2/2 way normally open Operation: direct acting Pressure range: 0 to 20 Bar Port sizes: 1/8 or 1/4" BSP or NPT thread Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve normally open diaphragm: NOPU225 Function: 2/2 way normally open Operation: pressure servo assisted floating diaphragm Pressure range: 0.5 to 15 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2, 2, 21/2 or 3" BSP or NPT Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,light oil and non aggressive | | Brass solenoid valve normally open hung diaphragm 0 rated: UWNO Function: 2/2 way normally open Operation: assisted close hung diaphragm Pressure range: 0 to 7 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 and 2" BSP or NPT thread Body material: brass Seal material: NBR, FKM or Silicone Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve normally open steam piston: NOSA Function: 2/2 way normally open Operation: servo pressure assisted close with floating piston Pressure range: 0.5 to 12 Bar steam or 20 bar air and water Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: brass Seal material: PTFE Media: air,gas,fluid,liquid,water,light oil and steam | | Brass solenoid valve normally open direct acting: NO850 Function: 2/2 way normally open Operation: direct acting forced pilot Pressure range: 0 to 16 Bar Port sizes: 3/8, 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP or NPT thread Body material: red brass Seal material: NBR, FKM, PTFE or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Cast Iron solenoid valve 2 way normally open flanged: NO860CI Function: 2/2 way normally open Operation: direct acting forced pilot Pressure range: 0 to 16 Bar Flange sizes: DN15, DN20, DN25, DN32, DN40 or DN50 PN16 flange Body material: cast iron Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Cast steel solenoid valve 2 way normally open flanged: NO860CI Function: 2/2 way normally open Operation: direct acting forced pilot Pressure range: 0 to 16 Bar Port sizes: DN15, DN20, DN25, DN32, DN40 or DN50 PN16 Flange Body material: cast steel Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | 3/2 way brass solenoid valve | | Brass solenoid valve miniature 3/2 way general purpose series: BT Function: 3/2 way normally closed Operation: direct acting Pressure range: 0 to 14 Bar Port sizes: 1/8" BSP or NPT thread Body material: brass Seal material: NBR or FKM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Aluminium air solenoid valve miniature manifold block: PU320 Function: 3/2 normally closed or 3/2 normally open Operation: direct acting Pressure range: 0 to 8.5 Bar Port sizes: 1/8 or 1/4" BSP or NPT thread Body material: anodised aluminium Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve miniature general purpose: 300201 Function: 3/2 normally closed, normally open or universal Operation: direct acting Pressure range: 0 to 13 Bar Port sizes: 1/8 or 1/4" BSP or NPT thread Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve 3 way miniature general purpose: VX Function: 3/2 way normally closed, normally open or universal Operation: direct acting Pressure range: 0 to 11 Bar Port: 1/8 to 1/4" BSP or NPT Body material: brass Seal material: NBR, FKM or EPDM Media: air,gas,fluid,water,vacuum,light oil and non aggressive | | Brass solenoid valve 3 way general purpose: 306380 + 309380 Optional ATEX Explosion Proof, Manual Reset or Manual Over Ride Function: 3/2 way universal, normally closed or normally open Operation: direct acting Pressure range: 0 to 10 Bar Port sizes: 1/4, 3/8 or 1/2" BSP or NPT thread Body: brass Seal material: NBR or FKM Media:air,gas,fluid,light oil and non aggressive gases
|
|  | | |
