 Plastic Valves

Plastic Solenoid Valves.

Plastic solenoid valves are manufactured from Nylon, Delrin (POM), PTFE, PVDF, PVC and PP to suit each and every application from agricultural irrigation systems to highly aggressive and corrosive acid or alkali media. All plastic solenoid valves offer a reduced price solution for the controlled flow of liquids and gases compared to stainless steel solenoid valves, but as plastic is generally a relatively weak but light weight material most plastic solenoid valves will have pressure and temperature limitations, generally from 2 up to about 10 bar and 100°C maximum.

You can read more about plastic solenoid valves here.

Plastic electric solenoid actuated valves fall into three main groups.

Low priced Nylon general purpose water valves for appliances and agriculture.
Middle of the range valves such as Delrin solenoid valves for slightly aggressive media such as slight acid or alkali, pure water, Reverse Osmosis water, de-mineralised water.
High end solenoid valves such as PTFE, PVC, PP and PVDF solenoid valves with isolating core (dry armature design) for very aggressive and corrosive acid and alkali media applications.
Most plastic electrically actuated valves are available across a range of operating voltages from 12vAC, 24vAC, 48vAC, 110vAC and 230vAC or 12vDC, 24vDC, 48vDC and even 110vDC with either IPXO faston tag, IP54 flying lead wire or IP65 DIN43650 safe area solenoid coils. Some better plastic valve manufacturers will offer ATEX hazardous area coils to suit.

2/2 Plastic Solenoid Valves for slightly aggressive media

De-mineralised, Reverse Osmosis and Pure Water, Slight Acid or Alkali

CS Fluid PA Delrin Plastic Solenoid Valves UK stock

Plastic solenoid valves Delrin Series: PA

Function: 2/2 normally closed

Operation: servo pressure assisted diaphragm

Pressure: 0.5 to 10 Bar

Port: 3/8 to 11/2" BSP or NPT thread

Body: delrin (POM)

Seal: EPDM, FKM or NBR

Media: air,water,de-mineralised water,pure water,RO water,slight acid,slight alkali.

CS Fluid NOPA delrin solenoid valves UK stock

Plastic solenoid valves Delrin Series: NOPA

Function: 2/2 normally open

Operation: servo pressure assisted diaphragm

Pressure: 0.5 to 10 Bar

Port: 3/8,1/2,3/4,1,11/4,11/2" BSP or NPT thread

Body: delrin (POM)

Seal: EPDM, FKM or NBR

Media: air,water,demin water,pure water,RO water, slight acid or alkali.

PK Delrin Solenoid Valves UK stock

Plastic solenoid valves Delrin Series: PK

Function: 2/2 normally closed

Operation: assisted lift diaphragm

Pressure: 0 to 7 Bar

Port: 1/2,3/4,1" BSP or NPT thread

Body: nylon

Seal: EPDM, FKM or NBR

Media: air,water,demin water,pure water,RO water, slight acid or alkali.

NOPK Delrin Plastic Solenoid Valves UK stock

Plastic solenoid valve series: NOPK

Function: 2/2 normally open

Operation: assisted lift diaphragm

Pressure: 0 to 7 Bar

Port: 1/2 to 1" BSP or NPT thread

Body: nylon

Seal: EPDM, FKM or NBR

Media: air,water,demin water,pure water,RO water, slight acid or alkali.

2/2 Plastic Solenoid Valves for Drinking Water, water appliances and WRAS approved Nylon solenoid valves.

S180 RPE Appliance Water Solenoid Valve

Nylon solenoid valve single 180 degree RPE :S180

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 3/4 BSP male to 10mm or 12mm hose

Body: nylon

Seal: NBR

Media: water

S90 RPE Appliance Water Solenoid Valve

Nylon solenoid valve single 90 degree RPE :S90

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 3/4 BSP male to 10mm or 12mm hose

Body: nylon

Seal: NBR

Media: water

D180 RPE Appliance Water Solenoid Valve

Nylon solenoid valve double 180 degree RPE :D180

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 3/4 BSP male to double 10mm or 12mm hose

Body: nylon

Seal: NBR

Media: water

D90 RPE Appliance Water Solenoid Valve

Nylon solenoid valve double 90 degree RPE :D90

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 3/4 BSP male to double 10mm or 12mm hose

Body: nylon

Seal: NBR

Media: water

T180 RPE Appliance Water Solenoid Valve

Nylon solenoid valve triple 180 degree RPE :T180

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 3/4 BSP male to triple 10mm or 12mm hose

Body: nylon

Seal: NBR

Media: water

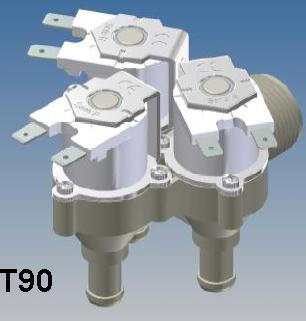

T90 RPE Appliance Water Solenoid Valve

Nylon solenoid valve triple 90 degree RPE :T90

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 3/4 BSP male to triple 10mm or 12mm hose

Body: nylon

Seal: NBR

Media: water

RPE 115BC Normally Closed Nylon Water Solenoid Valves UK Stock 01454 334990

normally closed water solenoid valves RPE 115BC:

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 1/4,3/8,1/2,3/4 BSP or 15mm JG Push Fit end

Body: nylon

Seal: NBR

Media: water

RPE 115BA Normally Open Nylon Water Solenoid Valves UK Stock 01454 334990

115BA RPE appliance water solenoid valve

Function: 2/2 normally open

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 1/4 to 3/4 BSP or 15mm JG Push Fit end

Body: nylon

Seal: NBR

Media: water

Terza Nylon Water Solenoid Valves Uk Stock 01454 334990

Terza WRAS approved water solenoid valve

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.2 to 10 Bar

Port: 1/2,3/4,1,11/4,11/2,2 BSP or NPT thread

Body: nylon

Seal: NBR or EPDM

Media: water

complete with manual over ride and flow controller

Shako GC Nylon Water Solenoid Valves UK Stock

Nylon miniature solenoid valve: GC

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 8 Bar

Port: 1/4 BSP

Body: nylon

Seal: EPDM

Media: water, air

Nass Magnet GKR Solenoid Valves UK Stock

Nass Magnet System 8 Solenoid Valves: GKR

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 14 Bar

Port: 00 22mm sub base

Body: nylon

Seal: NBR,EPDM,FKM

Media: water,air

Plastic Solenoid Valves - Series H 30mm CNOMO mount 3/2 solenoid valve with Polyamide body

Plastic air solenoid valve: H

Function: 3/2 normally closed

Operation: direct acting

Pressure: 0 to 35 Bar

Port: CNOMO 22mm sub base

Body: nylon

Seal: NBR,EPDM,FKM

Media: water,air

Plastic Solenoid Valves Series 3-10 9.8mm 3/2 PA solenoid valve with integral coil

Sub base mount solenoid valve: 3-10

Function: 3/2 normally closed

Operation: direct acting

Pressure: 0 to 8 Bar

Port: 9.8mm sub base

Body: PA6

Seal: NBR,EPDM,FKM

Media: filtered air, inert gases

2/2 Plastic Solenoid Valves for Very Aggressive Media

Strong Acid, Alkali, Solvent etc

PTFE solenoid valve for acid application from UK stock call 01454 334 990

PTFE solenoid valve for acids: PE220

Function: 2/2 normally closed

Operation: assisted lift

Pressure: 0 to 5 Bar

Port: 1/4,3/8,1/2,3/4 or 1" BSP or NPT thread

Body: PTFE

Seal: PTFE

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series PH PTFE 2/2 N/Closed 0 -10 Bar 1/4 - 3/4 BSP

PTFE solenoid valve for corrosive acids: PH

Function: 2/2 normally closed

Operation: assisted lift

Pressure: 0 to 10 Bar

Port: 1/4,3/8,1/2,3/4" BSP or NPT thread

Body: PTFE

Seal: PTFE

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves - Series C 0 - 0.5 Bar PVC

Isolated diaphragm solenoid valve: C40

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 0.5 Bar

Port: 1/2" BSP or NPT thread

Body: PVC

Seal: FKM, EPDM, Silicone

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series PPA1 Reinforced PPA 1/4 BSP 2/2 N/Closed 0 - 2 Bar

Dry armature solenoid valve: PPA1

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 2 Bar

Port: 1/4" BSP or NPT thread

Body: PPA

Seal: FKM, EPDM, Silicone

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series PPA2 Reinforced PPA 1/4 BSP 2/2 N/Open 0 - 1 Bar

Dry armature solenoid valve: PPA2

Function: 2/2 normally open

Operation: direct acting

Pressure: 0 to 1 Bar

Port: 1/4" BSP or NPT thread

Body: PPA

Seal: FKM, EPDM, Silicone

Media: very aggressive corrosive acid and alkali


PVC solenoid valve for sulphuric acid and hydrochloric acid

PVC solenoid valve for acid: UDC

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 1 Bar

Port: 1/4 to 1/2" BSP or NPT thread

Body: PVC

Seal: PTFE

Media: very aggressive corrosive acid and alkali

Plastic solenoid valve for very aggressive and corrosive media

Plastic solenoid valve: 111

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 6 Bar

Port: cement socket or 1/4" BSP or NPT thread

Body: PVC, PVDF,PTFE

Seal: EPDM, FKM

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series 148 PVC, PTFE 2/2 N Closed 1/4 BSP or 12mm 0 - 6 Bar

148 plastic solenoid valve

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 6 Bar

Port: cement socket or 1/4 to 1/2" BSP or NPT

Body: PVC or PTFE

Seal: FKM or EPDM

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series 150 PVC, PP, PTFE 2/2 N/Closed 0 - 2 Bar

150 plastic solenoid valve

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 2 Bar

Port: cement socket or 1/4 to 1/2" BSP or NPT

Body: PVC, PP or PTFE

Seal: FKM, EPDM

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series 150 PVC, PP, PTFE 2/2 N/Open 0 - 2 Bar

Plastic solenoid valve: NO150

Function: 2/2 normally open

Operation: direct acting

Pressure: 0 to 2 Bar

Port: cement socket or 1/4 to 1/2" BSP or NPT

Body: PVC, PP or PTFE

Seal: FKM, EPDM

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series 160 2/2 N/Closed PVC, PP or PTFE 0.3 - 6 Bar

Plastic solenoid valve: 160A

Function: 2/2 normally closed

Operation: servo pressure assisted

Pressure: 0.3 to 6 Bar

Port: 1/2 to 2" BSP or NPT thread

Body: PVC, PP or PTFE

Seal: FKM, EPDM

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series NO160 2/2 N/Open PVC, PP or PTFE 0.3 - 6 Bar

Plastic solenoid valve: NO160A

Function: 2/2 normally open

Operation: servo pressure assisted

Pressure: 0.3 to 6 Bar

Port: 1/2 to 2" BSP or NPT thread

Body: PVC, PP or PTFE

Seal: FKM, EPDM

Media: very aggressive corrosive acid and alkali

Plastic Solenoid Valves Series 136 Plastic Angle Seat Valve for very aggressive media

Plastic angle seat piston solenoid valve: 136

Function: 2/2 normally closed

Operation: direct acting

Pressure: 0 to 6 Bar

Port: 1/2 to 2" BSP or NPT thread

Body: PVC

Seal: FKM, EPDM

Media: very aggressive corrosive acid and alkali
