 Other Products    Co-axial valves

Coaxial solenoid and air operated coax valves

Coax Valves UK Stock 01454 334 990

Coax solenoid and coaxial pneumatically operated coaxial valves from 1/8" through to 2" thread or flange 2/2 way and 3/2 way for pressures ranging from 0 to over 400 Bar have been developed for the control of vacuum and gas, liquid, gelatinous, abrasive, contaminated, thick and aggressive media. The coaxial valve design allows, as compared to conventional solenoid valves high pressure control for even aggressive or contaminated media and offer bi-directional flow control with high Kv flow rate values. Coaxial solenoid and air actuated direct acting coax valves are available in 2/2 way or 3/2 way function with options for NPT thread, flange or manifold sub base mount connection. Actuation is either by direct-acting solenoid or external air pilot control via a Namur mount interface. Additional coaxial valve options include ATEX hazardous area Ex coils, coaxial valve open position switch or closed position indication, manual over ride, high temperature design, aluminium electrical box, vacuum versions, EPDM, NBR, FKM or PTFE sealing to suit most applications with many other custom made modifications available.

Coaxial valve benefits Include

  1. High cycle life

  2. Fast actuation

  3. Compact design

  4. Maintenance free

  5.  Bi-directional flow

  6. Pressure balanced

  7. Back pressure tight

  8. FAST DELIVERY TIMES

2/2 way direct acting coaxial solenoid valve

2/2 Coaxial Solenoid Valve 40 bar

Pressure: 0 to 40 Bar
Port Sizes: 1/4,3/8,1/2,3/4,1,11/4,11/2 and 2" BSP/NPT Thread or Flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm
Body: Brass, Stainless steel 304 or 316, Steel galvanised or nickel plated.
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free, manifold system, metal terminal box or vacuum version

2/2 Coaxial Solenoid Valve 64 bar

2/2 way direct acting coaxial solenoid valve
Pressure: 0 to 64 Bar
Port Sizes 1/4,3/8,1/2,3/4,1,11/4,11/2 and 2" BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm
Body: Brass, Stainless steel 304 or 316, Steel galvanised or nickel plated.
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free, manifold system, metal terminal box or vacuum version

2/2 Coaxial Solenoid Valve 120 bar

2/2 way direct acting coaxial solenoid valve
Pressure: 0 to 120 Bar
Port Sizes 1/4,3/8,1/2,3/4,1,11/4 or 11/2 BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm and 40mm
B
ody: Brass, Stainless steel 304 or 316, Steel galvanised or nickel plated.
Seals: FKM, option EPDM, NBR or PTFE.
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free, manifold system, metal terminal box or vacuum version.

3/2 way direct acting coaxial solenoid valve

3/2 Coaxial Solenoid Valve 40 bar

Pressure: 0 to 40 bar.
Port Sizes: 1/4,3/8,1/2,3/4,1,11/4 and 11/2" NPT/BSP thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm and 40mm
Body: Brass, Stainless steel 304 or 316.
Seals: FKM, option EPDM, NBR or PTFE.
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free,metal terminal box or vacuum version

3/2 Coaxial Solenoid Valve 64 bar

3/2 way direct acting coaxial solenoid valve
Pressure: 0 to 64 bar
Port Sizes: 1/4,3/8,1/2,3/4,1,11/4 and 11/2" NPT/BSP thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm and 40mm
Body: Brass, Stainless steel 304 or 316
Seals: FKM, option EPDM, NBR or PTFE.

Options: Position feedback,manual over ride, mounting brackets, Oil and grease free,metal terminal box or vacuum version.

2/2 way external pilot pneumatic coaxial valve

2/2 Coaxial Pneumatic Valve 64 bar

Pressure: 0 to 64 bar
Port sizes: 1/4,3/8,1/2,3/4,1,11/4,11/2 and 2" BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm
Body: Brass, Stainless steel 304 or 316, Steel galvanised or Nickel plated
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free, manifold system or vacuum version.

2/2 Coaxial Pneumatic Valve 120 bar

2/2 way external pilot pneumatic coaxial valve
Pressure: 0 to 120 bar
Port sizes: 1/4,3/8,1/2,3/4,1,11/4 or 11/2 BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm and 40mm
Body: Brass, Stainless steel 304 or 316, Steel galvanised or Nickel plated
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free, manifold system or vacuum version.

2/2 Coaxial Pneumatic Valve 160 bar

2/2 way external pilot pneumatic coaxial valve
Pressure: 0 to 160 bar
Port sizes: 1/4,3/8,1/2,3/4,1,11/4 or 11/2 BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm and 40mm
Body: Brass, Stainless steel 304 or 316, Steel galvanised or Nickel plated
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free, manifold system or vacuum version.

3/2 way external pilot pneumatic coaxial valve

3/2 Coaxial Pneumatic Valve 64 bar

Pressure: 0 to 64 bar
Port sizes: 1/4,3/8,1/2,3/4,1,11/4, 11/2 or 2" BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm
Body: Brass, Stainless steel 304 or 316, Steel galvanised or Nickel plated
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free or vacuum version.

3/2 Coaxial Pneumatic Valve 100 bar

3/2 way external pilot pneumatic coaxial valve
Pressure: 0 to 100 bar
Port sizes: 1/4,3/8,1/2,3/4,1,11/4, 11/2 or 2" BSP/NPT thread or flange
Orifice sizes: 10mm,15mm,20mm,25mm,32mm,40mm and 50mmBody: Brass, Stainless steel 304 or 316, Steel galvanised or Nickel plated
Seals: FKM, option EPDM, NBR or PTFE
Options: Position feedback,manual over ride, mounting brackets, Oil and grease free or vacuum version.

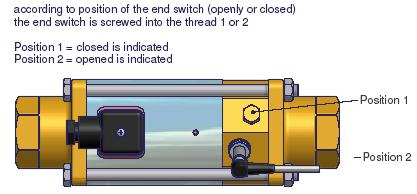

Co-axial solenoid valve with micro open and closed position switches. The unique position switch design is very intrusive, requiring minimal additional space, ease of installation and maintenance.
The picture below show coaxial valve with position sensors, which can be used across the full range of 2/2 and 3/2 coaxial solenoid and air operated valves.
coaxial solenoid valve with open and closed position switches
