 Valves Home    High Pressure Valves

High Pressure Solenoid Valves from UK leading Supplier.

High pressure solenoid valves for high pressure liquids and gases including 50 Bar, 100 Bar, 200 Bar, 300 Bar and in excess of 400  Bar with port sizes from 1/8 BSP through to 2" BSP or NPT thread. Typically direct acting, small orifice, compact size and reduced cost.
High pressure standard solenoid valves for pressures up to 500 bar are typically manufactured from AISI316Ti stainless steel and and high pressure brass solenoid valves for pressures up to 200 bar, as brass is not as strong as stainless steel.
Some high pressure valve manufacturers and suppliers offer options such as
1. manual over ride so the solenoid valve can me manually opened or closed
2. manual reset so the solenoid valve will not reopen unless manually reset whilst under electrical power to prevent automatic opening without manual intervention
3. ATEX explosion flame proof EEx dII C T4 temperature class 135
C or T6 temperature class +85C
4. ATEX EEx m II T4 encapsulated coil temperature class 85
C
5.Open and closed position switches for electrical valve position signalling
6. Double solenoid coil for improved reliability if one coil should fail.
7. Safety lock systems to prevent manual over ride without release of security device
8. Micro power suppression systems to prevent valve closure due to millisecond power failures
9. Metal to metal sealing with PTFE or elastomer seals for extremely corrosive or extreme temperature applications as even PTFE gives off toxic fumes over 250 centigrade
10. Thermal barriers to protect the solenoid coil from extreme high or low temperatures.
Coaxial high pressure solenoid operated and pneumatically operated coaxial valves are also available for pressure exceeding 300 bar, which can offer bi-directional flow control, handle aggressive and contaminated media, vacuum and thick viscous media. Coax valves are available in Brass, AISI304 and AISI316 stainless steel in both 2/2 and 3/2 way normally open and normally closed function.
Below is a short list of the more popular high pressure solenoid valves.

Read more about high pressure solenoid valves here.

High Pressure - Brass

2/2 Way Normally Closed

Series AD6000 Brass 2/2 N/Closed 0 to 150 Bar Size 1/8
High pressure solenoid valve miniature: AD6000
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 150 Bar
Port: 1/8" BSP or NPT thread
Body: brass
Seal: NBR, FKM or EPDM
Media: air,gas,fluid,water,vacuum,light oil
Series AD8000 Brass 2/2 N/Closed 0 to 150 Bar Size 1/4
High pressure solenoid valve miniature: AD8000
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 150 Bar
Port: 1/4" BSP or NPT thread
Body: brass
Seal: NBR, FKM or EPDM
Media: air,gas,fluid,water,vacuum,light oil
Series SAP Brass 2/2 N/Closed 1 to 100 Bar Sizes 1/8
High pressure solenoid valve miniature: SAP
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 1 to 100 Bar
Port: 1/8 to 3/8" BSP or NPT thread
Body: brass
Seal: PTFE
Media: air,gas,fluid,water,vacuum,light oil

Series W Brass 2/2 N/Closed 0 to 200 Bar Sizes 1/8

High pressure solenoid valve miniature: W
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 200 Bar
Port: 1/8 to 1/2" BSP or NPT thread
Body: brass
Seal: NBR,EPDM,FKM or PTFE
Media: air,gas,fluid,water,vacuum,light oil

Series WP Brass 2/2 N/Closed 0 to 200 Bar Sizes 1/8

High pressure solenoid valve miniature: WP
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 200 Bar
Port: 1/8 to 1/2" BSP or NPT thread
Body: brass
Seal: NBR, EPDM, FKM or PTFE
Media: air,gas,fluid,water,vacuum,light oil

Shako PU225H High Pressure Brass Solenoid Valve 01454 334990

High pressure solenoid valve: PU225H
Function: 2/2 normally closed
Operation: pressure servo assisted diaphragm
Pressure: 0.5 to 25 Bar
Port: 3/8 to 1" BSP or NPT thread
Body: brass
Seal: nylon reinforced EPDM, NBR or FKM
Media: air,gas,fluid,water,light oil

Series PU225X Brass 2/2 N/Closed 0.5 to 50 Bar Sizes 3/8

High pressure solenoid valve: PU225X
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 0.5 to 50 Bar
Port: 3/8 to 1" BSP or NPT thread
Body: brass
Seal: PTFE
Media: air,gas,fluid,water,light oil

Series SAH Brass 2/2 N/Closed 0.5 to 40 Bar Sizes 3/8

High pressure solenoid valve: SAH
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 0.5 to 40 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: brass
Seal: PTFE
Media: air,gas,fluid,water,light oil

Series SAHH Brass 2/2 N/Closed 0.5 to 80 Bar Sizes 3/8

High pressure solenoid valve: SAHH
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 0.5 to 80 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: brass
Seal: PTFE
Media: air,gas,fluid,water,light oil

Series SAHH Brass 2/2 N/Closed 0.5 to 120 Bar Sizes 3/8

High pressure solenoid valve: SAHHH
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 0.5 to 120 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: brass
Seal: PTFE
Media: air,gas,fluid,water,light oil

Series 271 Brass or Stainless 2/2 N/Closed coaxial 0 to 64 Bar Sizes 1/4

High pressure coax solenoid valve: 271
Function: 2/2 normally closed or normally open
Operation: direct acting
Pressure: 0 to 64 Bar
Port: 1/4 to 11/4" BSP or NPT thread
Body: brass or stainless steel
Seal: PTFE or FKM
Media: air,gas,fluid,water,heavy crude oil,thick

Series 272 Brass or Stainless 2/2 N/Closed coaxial 0 to 100 Bar Sizes 1/4

High pressure coax solenoid valve: 272
Function: 2/2 normally closed or normally open
Operation: direct acting
Pressure: 0 to 100 Bar
Port: 1/4 to 11/4" BSP or NPT thread
Body: brass or stainless steel
Seal: PTFE or FKM
Media: air,gas,fluid,water,heavy crude oil,thick

High Pressure - Brass

2/2 Way Normally Open

Series WF Brass 2/2 N/Open 0 to 200 Bar Sizes 1/8

Miniature high pressure solenoid valve: WF
Function: 2/2 normally open
Operation: direct acting
Pressure: 0 to 200 Bar
Port: 1/8 to 1/2" BSP or NPT thread
Body: brass
Seal: PTFE
Media: air,gas,fluid,water,vacuum,light oil

Shako NOPU225H Normally Open Brass High Pressure Solenoid Valve

High pressure solenoid valve: NOPU225H
Function: 2/2 normally open
Operation: pressure servo assisted
Pressure: 0.5 to 22 Bar
Port: 3/8 to 1" BSP or NPT thread
Body: brass
Seal: nylon reinforced NBR, EPDM or FKM
Media: air,gas,fluid,water,light oil

Series NOHPV Brass 2/2 N/Open 0.5 to 50 Bar Sizes 3/8

High pressure solenoid valve: NOHPV
Function: 2/2 normally open
Operation: pressure servo assisted
Pressure: 0.5 to 50 Bar
Port: 3/8 to 1/2" BSP or NPT thread
Body: brass
Seal: EPDM, FKM, NBR or Silicone
Media: air,gas,fluid,water,light oil

High Pressure - Stainless Steel

2/2 Way Normally Closed

Series ADS6000 Stainless 2/2 N/Closed 0 to 150 Bar Size 1/8

High pressure solenoid valve miniature: ADS6000
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 150 Bar
Port: 1/8" BSP or NPT thread
Body: 316 stainless steel
Seal: NBR, FKM, FFKM, EPDM, Silicone or PTFE
Media: air,gas,water,vacuum,oil, slightly aggressive

Series ADS8000 Stainless 2/2 N/Closed 0 to 150 Bar Size 1/4

High pressure solenoid valve miniature: ADS8000
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 150 Bar
Port: 1/4" BSP or NPT thread
Body: 316 Stainless steel
Seal: NBR, FKM, FFKM, EPDM, Silicone or PTFE
Media: air,gas,water,vacuum,oil, slightly aggressive

Series SAPS Stainless 2/2 N/Closed 1 to 100 Bar Size 1/8

High pressure solenoid valve miniature: SAPS
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 1 to 100 Bar
Port: 1/8 to 3/8" BSP or NPT thread
Body: 316 stainless steel
Seal: PTFE
Media: air,gas,water,oil, slightly aggressive

Series SASH Stainless 2/2 N/Closed 0.5 to 40 Bar Size 3/8

High pressure solenoid valve: SASH
Function: 2/2 normally closed
Operation: servo pressure assisted piston
Pressure: 0.5 to 40 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: 316 stainless steel
Seal: PTFE
Media: air,gas,water,oil, slightly aggressive

Series SASHH Stainless 2/2 N/Closed 0.5 to 80 Bar Size 3/8

High pressure solenoid valve: SASHH
Function: 2/2 normally closed
Operation: servo pressure assisted piston
Pressure: 0.5 to 80 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: 316 stainless steel
Seal: PTFE
Media: air,gas,water,oil, slightly aggressive

Series SASHHH Stainless 2/2 N/Closed 0.5 to 120 Bar Size 3/8

High pressure solenoid valve: SASHHH
Function: 2/2 normally closed
Operation: servo pressure assisted piston
Pressure: 0.5 to 120 Bar
Port: 3/8 or 1/2" BSP or NPT thread
Body: 316 stainless steel
Seal: PTFE
Media: air,gas,water,oil, slightly aggressive

Series WH Stainless 2/2 N/Closed 0 to 200 Bar Size 1/8

High pressure solenoid valve: WH
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 200 Bar
Port: 1/8 to 1/2" BSP or NPT thread
Body: stainless steel
Seal: PTFE
Media: air,gas,water,oil,vacuum,slightly aggressive

Series WPH Stainless 2/2 N/Closed 0 to 400 Bar Size 1/8

High pressure solenoid valve: WPH
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 400 Bar
Port: 1/8 to 1/2" BSP or NPT thread
Body: stainless steel
Seal: PTFE
Media: air,gas,water,oil,vacuum,slightly aggressive

High Pressure - Stainless Steel

2/2 Way Normally Open

Series WFH Stainless 2/2 N/Open 0 to 300 Bar Size 1/8

Solenoid valve high pressure miniature: WFH
Function: 2/2 normally open
Operation: direct acting
Pressure: 0 to 300 Bar
Port: 1/8 to 1/2" BSP or NPT thread
Body: stainless steel
Seal: PTFE
Media: air,gas,water,oil,vacuum,slightly aggressive

Series NOHPVS Stainless 2/2 N/Open 0.5 to 50 Bar Size 3/8

Solenoid valve high pressure miniature: NOHPVS
Function: 2/2 normally open
Operation: servo pressure assisted diaphragm
Pressure: 0.5 to 50 Bar
Port: 3/8 to 1/2" BSP or NPT thread
Body: 316 stainless steel
Seal: EPDM, NBR, Silicone or FKM
Media: air,gas,water,oil,vacuum,slightly aggressive

High Pressure - Brass + Stainless

3/2 Way 3 port 2 position

Series RH Stainless 3/2 N/Closed 0 to 25 Bar Size 1/8

Solenoid valve high pressure miniature: RH
Function: 3/2 normally closed
Operation: direct acting
Pressure: 0 to 25 Bar
Port: 1/8 to 1/4" BSP or NPT thread
Body: brass or stainless steel
Seal: FKM or PTFE
Media: air,gas,fluid,water,light oil,vacuum

Series 371 Brass or Stainless coaxial 3/2 N/Closed 0 to 64 Bar Size 1/4

Coaxial solenoid valve high pressure 3 way: 371
Function: 3/2 normally closed or normally open
Operation: direct acting
Pressure: 0 to 64 Bar
Port: 1/4 to 11/2" BSP or NPT thread
Body: brass or stainless steel 304 + 316
Seal: FKM or PTFE
Media: air,gas,fluid,water,oil,vacuum, thick media

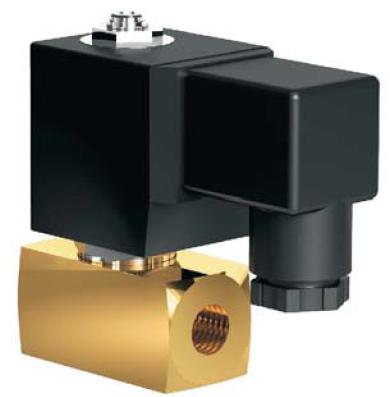

Series 72 Brass or Stainless 3/2 0 to 90 Bar Size 1/8

Solenoid valve high pressure 3/2 way: Type 72
Function: 3/2 normally closed / open or universal
Body: brass or stainless steel
Seals: FKM or EPDM
Port: G1/8 to G1/2
Pressure: 0 to 90 bar
Temp -10C to +180C
Option -40C to +130C

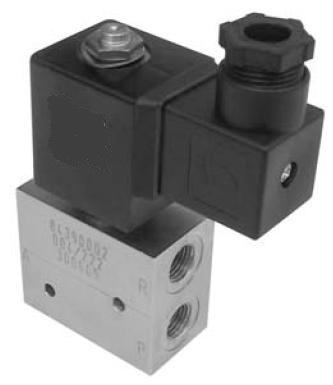

Series 73 Brass or Stainless 3/2 Universal 0 to 20 Bar Size 1/4

Type 73 High Pressure Solenoid Valve

Function: 3/2 universal

Body: brass or stainless steel Seals: NBR, FKM, PTFE, EPDM

Ports: G1/4 to G2

Pressure: 0 to 20 bar

Temp -10C to +180C, Option -40C to +180C

Solenoid valve TYPE 73 Data sheet

Series 75 Brass or Stainless 3/2 0 to 40 Bar Size 1/4

Solenoid valve high pressure: Type 75

Function: 3/2 normally closed, open or universal

Body: brass or stainless steel

Seals: FKM

Port: G1/4 to G1/2

Pressure: 0 to 40 bar

Temp -10C to +180CC, option -40C to +180C

Solenoid valve type 75 Data Sheet

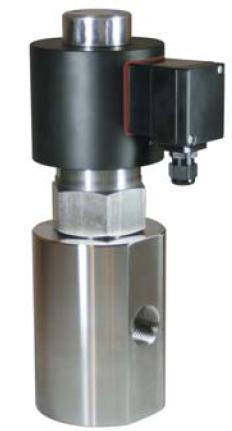

Series 3045 Brass or Stainless 3/2 Universal 0 to 250 Bar Size 1/4

High pressure solenoid valve: Type 3045

Function: 3/2 universal

Body: stainless steel or brass

Seals: PTFE

Port: G1/4 to G1

Pressure: 0 to 250 bar

Temp -10C to +180C, option -20 to +130C

Solenoid valve type 3045 Data sheet

special applications

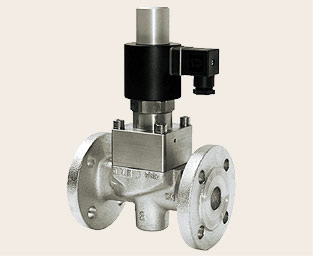

Series 24 Brass, Stainless, Cast Iron or Steel 2/2 N/Closed or N/Open 0 to 40 Bar Sizes DN15 to DN300 from Connexion T: 01454 334990

High pressure solenoid valve: Type 24
Function: 2/2 way normally closed or open
Body: GG-25, GS-C25 or stainless steel
Seals: NBR, FKM, PTFE or EPDM
Port: Flange DN15 to DN300
Pressure: 0-16 or 40 bar
Media:-10C to +80C,Option -40C to+130C

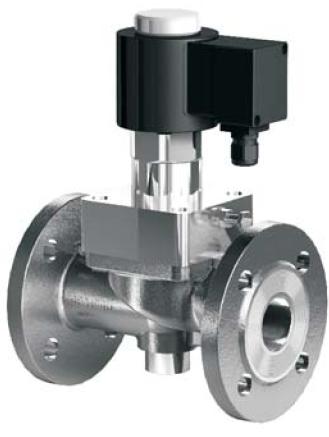

Series 24th Stainless 2/2 N/Closed or N/Open 0 to 40 Bar Sizes DN15 to DN300 from Connexion T: 01454 334990

High pressure solenoid valve: Type 24th
Function: 2/2 normally closed or normally open
Body: GG-25, GS-C25 or stainless steel
Seals: NBR, FKM, PTFE or EPDM
Port: Flange DN15 to DN200
Pressure: 0 to 16 or 40 bar
Temp up to -40C to+180C,Option +200C
Protection: IP65

Series 27 High Pressure Solenoid Valve

High pressure solenoid valve: Type 27
Function: 2/2 way normally closed, normally open
Body: GG-25, GS-C25 or stainless Steel
Seals: NBR, PTFE, FKM or EPDM
Port: Flange DN15 to DN300
Pressure: 0 to 16 bar
Temp -10C to +80C,Option -20C to +130C

Series 35 Brass or Stainless 2/2 N/Closed 0 to 40 Bar Sizes 1/4

High pressure solenoid valve: Type 35

Function: 2/2 way normally closed

Body: brass or stainless steel

Seals: NBR

Port: 1/4 to G1

Pressure:  0 to 40 bar

Protection: IP65

Solenoid valve type: 35 Data sheet

Series 43 Brass or Stainless 2/2 N/Closed or N/Open 0 to 16 Bar Sizes 1/4

High pressure solenoid valve: Type 43

Function: 2/2 way normally closed or normally open

Body: brass or stainless steel

Seals: NBR, FKM,PTFE or EPDM

Port: 1/4 to G2

Pressure: 0 to 16 bar

Temp -10C to +80C, Option -20C to +130C

Protection IP65

Solenoid valve type 43 Data sheet

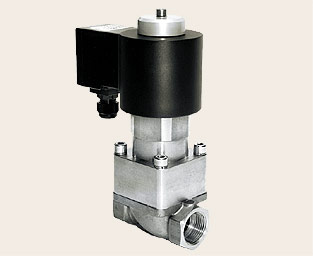

Series 49 Brass or Stainless 2/2 N/Closed or N/Open 0 to 40 Bar Sizes 1/4

High pressure solenoid Valve: Type 49
Function: 2/2 normally closed or normally open

Body: brass or stainless steel

Seals: NBR, FKM, PTFE or EPDM

Port: G1/4 to G3

Pressure: 0 to 10 bar, 25 bar or 40 bar

Temp: -10C to +80C, option -40C to +200C

Protection IP65

TYPE 49 Data sheet

Series 49th Brass, Stainless, Cast Iron or Steel 2/2 N/Closed or N/Open 0 to 40 Bar Sizes 1/4

High pressure solenoid valve: Type 49TH

Function: 2/2 normally closed or normally open

Body: brass or stainless steel

Seals: PTFE

Port: G1/4 to G2

Pressure: 0 to 40 bar

Temp: -40C to +180 or 200C

Protection IP65

Solenoid valve type 49TH Data sheet

Series 1041 High Pressure Solenoid Valves UK

High pressure solenoid valve: Type 1041

Function: 2/2 way normally closed or normally open

Body: brass or stainless Steel, GS-C25, C22.8

Seals: NBR, FKM, EPDM or PTFE

Port: G1/4 to G2

Pressure: 0 to 100 bar

Temp -10C to +80C

Protection IP65

Solenoid valve type 1041 Data Sheet

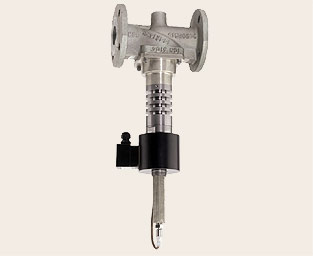

Series 2164 High Pressure Steam Solenoid Valves UK

High temperature solenoid valve: Type 2164

Function: 2/2 way normally closed or normally open

Body material: brass, GS-C25 or stainless steel

Seals: metallic sealing

Port: Flange DN15 to DN100 or G1/4 to G2

Pressure: 0 to 40 bar

Temp: -10C to +300C, Option -40C to +180C

High temperature solenoid valve 2164 Data sheet

Series 52 High Pressure Solenoid Valves UK

High pressure solenoid Valve: Type 52

Function: 2/2 N/Closed Option N/Open

Body: brass or stainless steel

Seals: FKM, PTFE, EPDM

Port: G1/8 to G1/4

Pressure: 0 to 300 bar

Temp -10C to +80C, Option -40C to +130C

Protection IP65

Solenoid valve type 52 Data sheet

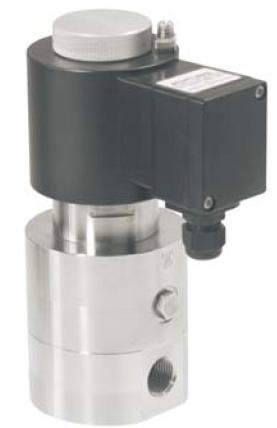

Series 2/529 High Pressure Solenoid Valves UK

High pressure solenoid valve: Type 2529

Function: 2/2 n/closed option n/open

Body: stainless steel

Seals: NBR, PTFE or Peek

Port: G1/8 to G2

Pressure:1 to 450 bar

Temp -20C to +80C, Option -40C to +130C

Protection IP65

TYPE 2529 Data sheet

graphic design
News & Events

3/2 Coax Solenoid Valves

3/2 coax valves sizes 1/4 to 2" Thread or Flange Click here for Coaxial Valves



2/2 Coax Air Valves

2/2 Coaxial Pneumatic Valves

Sizes 1/4 to 2" thread and flange Click here for Coaxial Valves



3/2 Coax Air Valves

3/2 Coaxial Pneumatic Valves

Sizes 1/4 to 2" thread and flange Click here for Coaxial Valves


graphic design
