 Brass Valves    Brass 2/2 Valves Normally Open

Brass Solenoid Valve 2/2 Way Normally Open.

Brass 2/2 way normally open solenoid valves or fail-safe open solenoid valves will default to the open position allowing the flow of media, these 2-way n/open valves will only close when electrical power is applied.
Generally normally open solenoid valves are stocked in sizes from 3/8 up to 3" BSP thread including miniature brass solenoid valves 1/8, 1/4, 3/8 and 1/2" BSP.
Brass 2/2 way normally open pressure or servo assisted solenoid valves require a pressure differential or difference in pressure between inlet pressure and the outlet pressure (back pressure) above 0.3 to 0.5 bar depending on model and manufacturer, typically available between 3/8" BSP though to 3" BSP thread, with options for NBR, EPDM and FKM sealing across most voltages. These pilot or servo pressure assisted valves are ideally suited to open to atmosphere systems and high pressure systems. size for size pressure assisted valve are cheaper than direct acting or zero rated valves.
Brass hung diaphragm valves also known as assisted close, zero rated and direct acting 2/2 way normally open brass solenoid valves will operate from zero pressure differential, i.e. will function with or without pressure differences and are generally available from port sizes from 3/8" through to 2" BSP or NPT thread, seal options NBR, EPDM or FKM, however f
langed solenoid valves typically a pre order item from most valve suppliers and manufacturers. Zero rated fail open brass solenoid valves are ideally suited to closed loop systems, gravity fed systems and low pressure systems.
3/2 way normally open solenoid valves are designed to divert flow to or from a piped system such as a cylinder or valve actuator, typical 3 port 2 position valves are available with NBR, FKM, EPDM, Silicone, FFKM or PTFE seals to suit most non aggressive non corrosive applications such as vacuum, air, water, steam, light oil or any other suitable non corrosive non aggressive fluids or gases.

Brass Solenoid Valve 2/2 way Normally Open

Series NOAD612 Brass 2/2 N/Open 0 to 10 Bar Sizes 1/8

Brass solenoid valve miniature direct acting: NOAD612
Function: 2/2 way normally open
Operation: direct acting
Pressure range: 0 to 10 Bar
Port sizes: 1/8, 1/4, 3/8 or 1/2" BSP or NPT thread
Body material: brass
Seal material: NBR, FKM, EPDM, Silicone, PTFE
Media: air,water,light oil,vacuum,most inert fluids + gases.

Series 200201NO Brass 2/2 N/Open 0 to 20 Bar Sizes 1/8

Brass solenoid valve normally open miniature: 200201NO
Function: 2/2 way normally open
Operation: direct acting
Pressure range: 0 to 20 Bar
Port sizes: 1/8 or 1/4" BSP or NPT thread
Body material: brass
Seal material: NBR, FKM or EPDM
Media: air,water,light oil,vacuum,most inert fluids + gases.

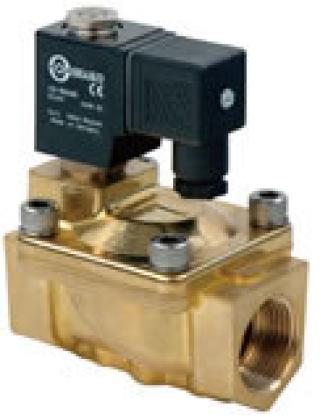

NOPU225 brass solenoid valve

Brass solenoid valve normally open diaphragm: NOPU225
Function: 2/2 way normally open
Operation: pressure servo assisted floating diaphragm
Pressure range: 0.5 to 10 Bar
Port sizes: 3/8,1/2,3/4,1,11/4,11/2,2,21/2,3" BSP or NPT
Body material: brass
Seal material: NBR, FKM or EPDM
Media: air,water,light oil,most inert liquids and gases.

Series UWNO Brass 2/2 N/Open 0 to 7 Bar Sizes 3/8

Brass solenoid valve normally open 0 rated: UWNO
Function: 2/2 way normally open
Operation: assisted close hung diaphragm
Pressure range: 0 to 7 Bar
Port sizes: 3/8,1/2,3/4,1,11/4,11/2,2" BSP or NPT thread
Body material: brass
Seal material: NBR, FKM or Silicone
Media: air,water,light oil,vacuum,most inert fluids + gases.

Series NOSA Brass 2/2 N/Open 0.5 to 20 Bar Sizes 3/8

Brass solenoid valve high pressure normally open: NOSA
Function: 2/2 way normally open
Operation: servo pressure assisted close floating piston
Pressure range steam: 0.5 to 12 Bar
Pressure range air or water: 0.5 to 20 bar
Port sizes: 3/8,1/2,3/4,1,11/4,11/2,2" BSP or NPT thread
Body material: brass
Seal material: PTFE
Media: steam, hot air,water,light oil,inert liquids or gases.

Series NO850 Red Brass 2/2 N/Open 0 to 16 Bar Sizes 3/8

Brass solenoid valve normally open direct acting: NO850
Function: 2/2 way normally open
Operation: direct acting forced pilot
Pressure range: 0 to 16 Bar
Port sizes: 3/8,1/2,3/4,1,11/4,11/2,2" BSP or NPT thread
Body material: red brass
Seal material: NBR, FKM or EPDM
Media: air,water,light oil,vacuum,most inert fluids + gases.

Series NO860CI Cast Iron 2/2 N/Open 0 to 16 Bar Sizes DN15 to DN50 from Connexion T: 01454 334990

Cast Iron solenoid valve Normally open: NO860CI
Function: 2/2 way normally open
Operation: direct acting forced pilot
Pressure range: 0 to 16 Bar
Flange sizes: DN15,DN20,DN25,DN32,DN40,DN50 PN16
Body material: cast iron
Seal material: NBR, FKM, PTFE or EPDM
Media: air,water,light oil,vacuum,most inert fluid + gases.

Series NO860CS Cast Steel 2/2 N/Open 0 to 16 Bar Sizes DN15 to DN50 from Connexion T: 01454 334990

Cast steel solenoid valve Normally open direct: NO860CS
Function: 2/2 way normally open
Operation: direct acting forced pilot
Pressure range: 0 to 16 Bar
Flange sizes: DN15,DN20,DN25,DN32,DN40,DN50 PN16
Body material: cast steel
Seal material: NBR, FKM, PTFE or EPDM
Media: air,water,light oil,vacuum,most inert fluids + gases
