Plastic Water Solenoid Valves.

Plastic water solenoid valves are typically constructed from Nylon, nylon works very well with water as it will not corrode, its light weight, adequately strong and resists ageing well. Delrin (POM), PVC or PP and other synthetic or plastic solenoid valves are also suitable for RO water, Pure Water, Demin water and almost any other non aggressive and non corrosive fluid or gas, but these are often much more expensive than Nylon.
The most popular water appliance solenoid valves found in washing machines, dishwashers, drinking water systems and other water appliances.
2/2 Plastic Solenoid Valves for Water and Air

Appliance plastic water solenoid valve: S180
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port: 3/4 BSP male to 10mm /12mm hose insert
Body material: nylon
Seal material: NBR
Media: water

RPE appliance water solenoid valve: S90
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 3/4 BSP male to 10mm or 12mm hose connector
Body material: nylon
Seal material: NBR
Media: water

RPE appliance water solenoid valve: D180
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 3/4 BSP male to 10mm or 12mm hose fitting
Body material: nylon
Seal material: NBR
Media: water

RPE appliance water solenoid valve: D90
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 3/4 BSP male to 10mm or 12mm hose connector
Body material: nylon
Seal material: NBR
Media: water

RPE appliance water solenoid valve: T180
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 3/4 BSP male to 10mm or 12mm hose barb
Body material: nylon
Seal material: NBR
Media: water

RPE appliance water solenoid valve: T90
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 3/4 BSP male to 10mm or 12mm hose tail
Body material: nylon
Seal material: NBR
Media: water

Series 115BC Nylon 2/2 N/Closed 0.2 to 10 Bar Sizes 1/4

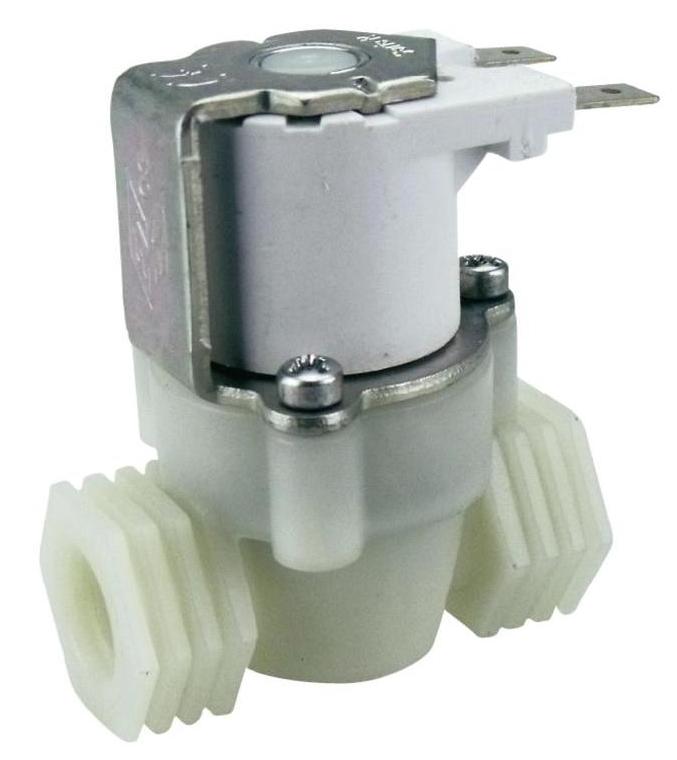

WRAS plastic water solenoid valve: 115BC
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 1/4", 3/8", 1/2", 3/4 BSP or 15mm JG Push Fit end
Body material: nylon
Seal material: NBR
Media: water

Series 115BA Nylon 2/2 N/Open 0.2 to 10 Bar Sizes 1/4

Water solenoid valve RPE: 115BA
Function: 2/2 way normally open
Operation: servo pressure assisted
Pressure: 0.2 to 10 Bar
Port: 1/4", 3/8", 1/2", 3/4 BSP or 15mm JG Push Fit end
Body material: nylon
Seal material: NBR
Media: water
Removed from sale due to brittle coil clasps

Series TERZA Nylon 2/2 N/Closed 0.2 to 10 Bar Sizes 1/2

Water solenoid valve RPE: Terza
Function: 2/2 normally closed
Operation: servo pressure assisted
Pressure range: 0.2 to 10 Bar
Port sizes: 1/2", 3/4",1", 11/4", 11/2" and 2" BSP
Body material: nylon
Seal material: NBR
Media: water
Series GC Nylon 2/2 N/Closed 0 to 8 Bar Sizes 1/8
Nylon water solenoid valve miniature: GC
Function: 2/2 way normally closed
Operation: direct acting
Pressure range: 0 to 8 Bar
Port sizes: 1/4" BSP
Body material: nylon
Seal material: EPDM
Media: water,vending water,mains water, drinking water
