 Stainless Valves    Stainless Valves High Temp

Stainless steel solenoid valves for steam and hot media.

Stainless Steel solenoid valves for Steam and high temperature applications are typically 2/2 way or 2 port 2 position valves for open or closed flow or no flow liquid or gas flow control. High temperature solenoid actuated valves are generally available with port sizes 1/2", 3/4", 1", 11/4", 11/2" and 2" BSP or NPT thread or DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300 up to DN500 with PN16, or ANSI150Lb or JIS10K Flanges.
These high temperature Solenoid Valves are manufactured from either AISI304 or SUS316  stainless steel body and internals with either PTFE or FFKM elastomer sealing suitable for steam up to 10 or 12 bar and hot oil applications +185°C to +200°C.
Pressure ratings are typically 10/12 bar maximum depending on the manufacturer or model chosen and are generally fitted with either IP54 or IP65 CE approved DIN43650A or flying lead wire class H or class N solenoid valve coil. Common control voltages include 12vdc, 24vdc, 110vAC or 220vac, 230vac and 240vAC 50/60Hz coils with other voltages available also.
You can view and read more about high temperature solenoid valves here...

Stainless Steel Steam rated Solenoid Valves

SUS Stainless teel miniature steam solenoid valves UK stock 01454 334990

SUS610 miniature stainless steam solenoid valve
Function: 2/2 normally closed
Operation: direct acting
Pressure: 0 to 7 Bar
Port: 1/8, 1/4 or 3/8 BSP or NPT thread
Body: 316 stainless steel
Seal: PTFE
Media: steam,vacuum,hot oil,hot water,hot air or liquids

316 stainless steel steam rated solenoid valves UK 01454 334990

SUS stainless steam solenoid valve
Function: 2/2 normally closed
Operation: pressure servo assisted piston
Pressure: 0.2 to 10 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: 316 stainless steel
Seal: PTFE
Media: steam,hot oil,hot water,hot air or liquids

Series ADS Stainless 2/2 N/Closed 0 to 10 Bar Size 3/8

ADS steam stainless steel solenoid valve
Function: 2/2 normally closed
Operation: assisted lift diaphragm
Pressure: 0 to 10 Bar
Port: 3/8 to 2" BSP or NPT thread
Body: 316 stainless steel
Seal: FFKM
Media: steam,vacuum,hot oil,hot water,hot air or liquids

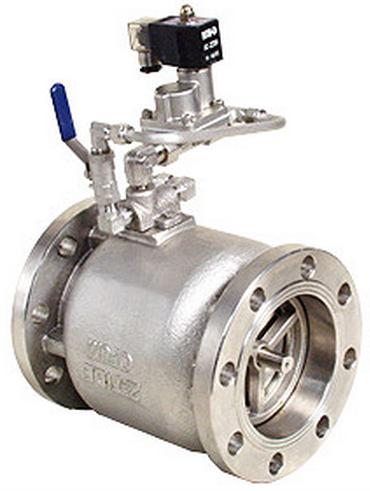

BFE-S Flanged stainless steel steam solenoid valves call 01454 334990

BFE-S steam stainless steel solenoid valve
Function: 2/2 normally closed
Operation: pressure assisted piston
Pressure: 0.3 to 10 Bar
Port: DN50 to DN500 flange PN16, ANSI150Lb or JIS10K
Body: 316 stainless steel
Seal: FFKM
Media: steam,vacuum,hot oil,hot water,hot air or liquids
